تفاصيل المنتج:
|
| حجم الجدول:: | 800*800mm | Max Payload ::: | 200 كجم |
|---|---|---|---|
| شكل الموجة:: | النبض النصف | نطاق التسارع:: | 5-100 جرام |
| مدة النبض:: | 6 إلى 18 ثانية | تغير السرعة القصوى: | 2.6 م/ث |
| أبعاد الآلة (مم): | 900*960*800 | وزن الآلة (كغ): | 2160 |
| المعايير: | GB/T2423.4 ، GB/T2423.6 ، IEC68-2-29 ، JJG497-2000 ، JISC0042-1995 ETC | تسليط الضوء:: | كرر آلة اختبار التأثير ، آلة اختبار عثرة التأثير المتكرر ، آلة اختبار النتوء الإلكترونية |
| إبراز: | SKM800 bump test machine,electronic component bump tester,repeated bump testing machine,electronic component bump tester,repeated bump testing machine |
||

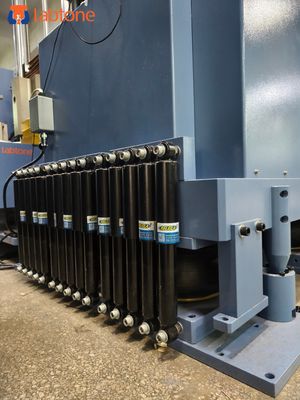

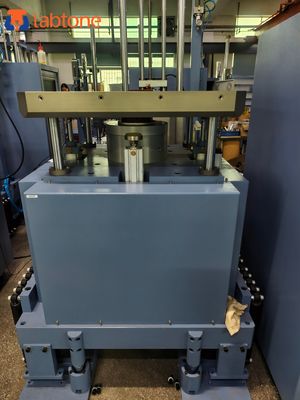

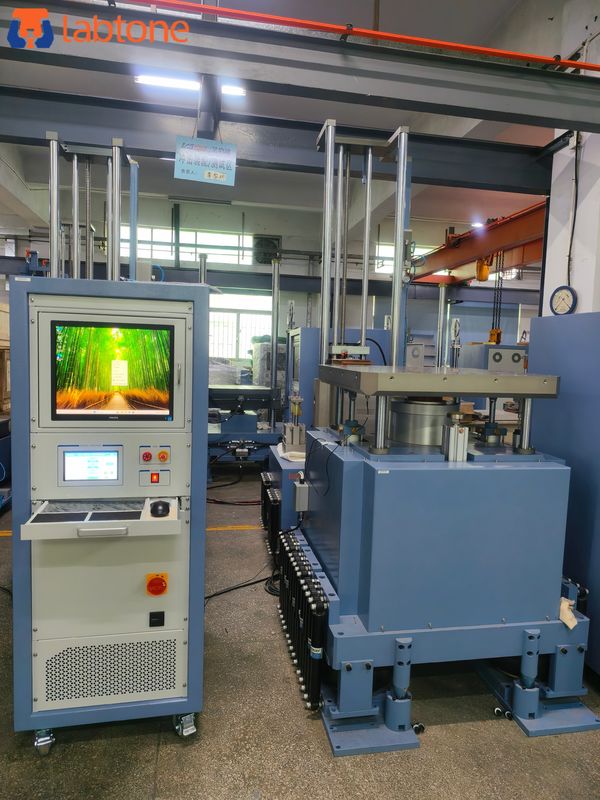

Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipmentand other electronic electrician products during transport or using which may be subjected to repeated shocks.
SKM500 provides high quality shock pulse capability with the added benefit of a must faster cycle time up to 120 shock impacts per minute. SKM500 Shock Test System can generate high energy impacts with velocity changes up to 6.8m/s.
Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
