تفاصيل المنتج:
|
| الأعلى. وزن العينة:: | 300 كجم | نطاق مدة النبض (MS):: | 3 ~ 20 مللي ثانية |
|---|---|---|---|
| نطاق التسارع (م/S2):: | نصف الصين: 500G | حجم الجدول:: | 100 × 100 سم |
| تسليط الضوء:: | نظام اختبار الصدمة AC380V، آلية التخفيف الهيدروليكي نظام اختبار الصدمة، نظام اختبار الصدمة الموجة ال | ||
| إبراز: | aviation aerospace shock test system,500g acceleration shock test system,half sinusoidal wave shock tester,500g acceleration shock test system,half sinusoidal wave shock tester |
||

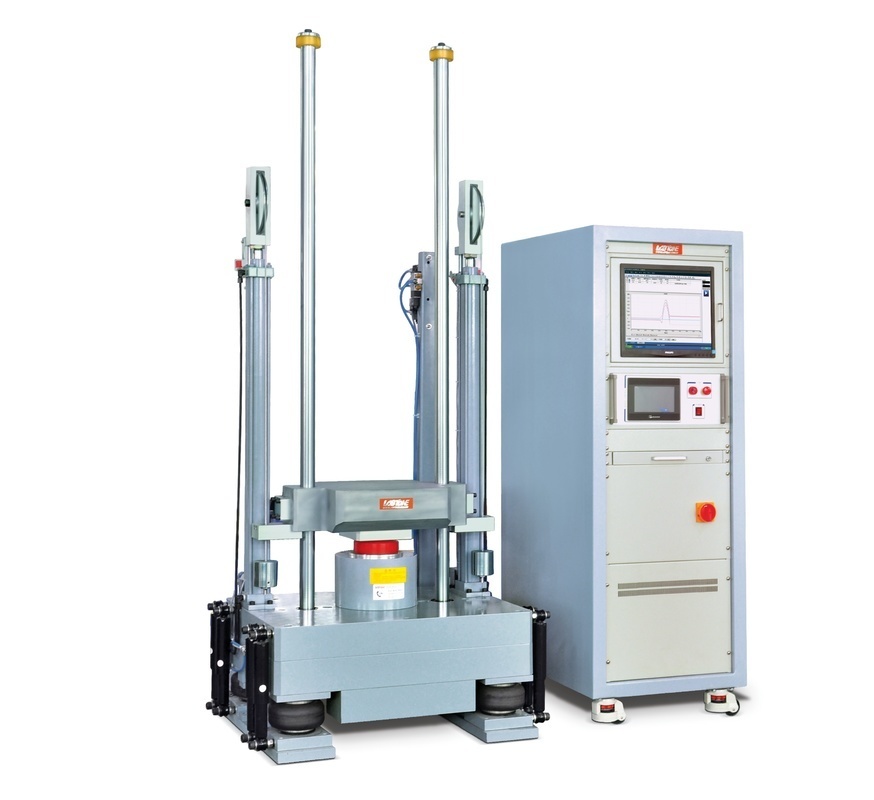

Shock Test Systems include a seismic base, a table, a lifting system, guide columns, a braking system, shock pulse generators, and control console.
The test specimen is mounted on the table, The table is dropped onto the base and is stopped by a braking system after it rebounds from the table
Machine control functions and brake pressurization adjustments are made through the computer system
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | |
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
|
Max.
Acceleration (G)
|
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| Square | 150 | 150 | 150 | 100 | 100 | 100 | ||
|
Pulse duration
(ms)
|
Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | |
| Square | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | ||
| Controller cabinet dimension(cm) | W55*D50*H80 | |||||||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | |
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa | |||||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL- | |||||||
Company profile:
Labtone Test Equipment Co., Ltd. is a +22 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started a business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument, and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals, and guides as well as having qualified staff and experts to solve your problems.
We sincerely invite you to visit our factory.
