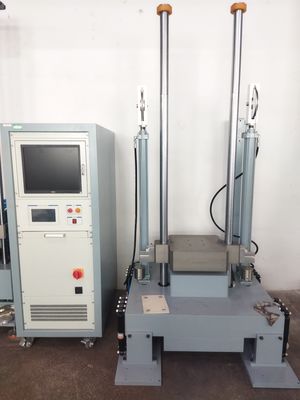

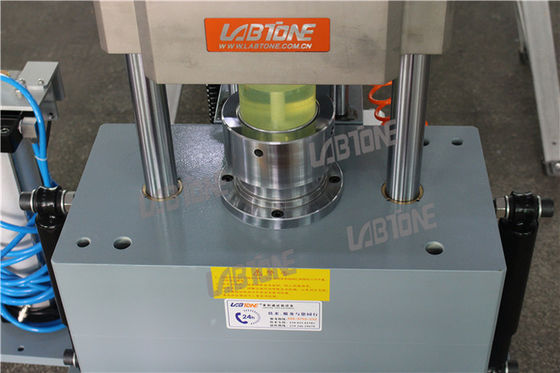

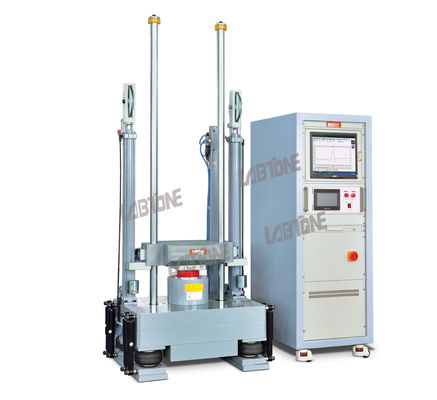

تفاصيل المنتج:
|
| نموذج:: | SKT500 | حجم الجدول:: | 120 × 120 سم |
|---|---|---|---|
| عينة الحد الأقصى للوزن (كغ):: | 500 كجم | الأعلى. التسارع (ز):: | 500 جرام |
| نطاق مدة النبض (MS):: | 3 ~ 20 مللي ثانية | وزن الجهاز:: | 8500 كجم |
| تسليط الضوء:: | نظام اختبار صدمة الموجة الجيبية نصف ، نظام اختبار صدمة التسارع 500 جرام ، نظام اختبار الصدمة 500 جم | ||
| إبراز: | 500g shock test system,half sinusoidal wave shock tester,500kg payload shock testing system,half sinusoidal wave shock tester,500kg payload shock testing system |
||
Features
Specifications
| Model | SKT50 | SKT100 | SKT200 | SKT300 | SKT500 | SKT1000 | SKT1500 | |
| Table size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | |
| Maximum Specimen Weight(Kg) | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 100 | 100 | 100 | 60 | 50 | 50 | 50 | |
| Pulse Duration (ms) | half sine | 30~1 | 30~2 | 30~2 | 20~3 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | |
| Machine Dimension(cm) | 82x90x195 | 120x105x245 | 130x120x260 | 150x130x260 | 200x160x300 | 230x180x310 | 250x250x310 | |
| Controller cabinet Dimension(cm) | W55 x D50 x H80 | |||||||
| Machine Weight(Kg) | 1050 | 2000 | 3200 | 4200 | 8500 | 15500 | 21500 | |
| Power supply | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Conforming standards |
GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
|||||||
FAQ
1. Peak acceleration and pulse duration can perform?
5g 30ms; 15g 11ms; 30g 18ms; 50g 6ms; 50g 11ms; 50g 3ms; 100g 6ms; 200g 6ms; 200g 3ms; 500g 1ms etc.
2. How do you control shakers?
If we're looking for resonances in the product we're testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies. But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously. Control commands go into the keyboard of a specially programmed computer.
3. The purpose of test?
