تفاصيل المنتج:
|
| اسم: | 35000 جرام نظام اختبار صدمة عالية السرعة مع جدول 30x 30 سم | طاولة العمليات: | 300x300mm |
|---|---|---|---|
| الوزن الأقصى للعينة (كجم): | 30 كجم | نبض الصدمة: | نصف جيبية |
| نطاق التسارع (م / ث 2): | 20 ---- 10000 جرام | نطاق مدة النبض (مللي ثانية): | 0.2 ~ 11 |
| مضخم مزدوج الكتلة للصدمات: | DMSA150 | طاولة: | 150 × 105 ملم |
| تسريع: | 30000 جرام | مدة النبض: | 0.06 مللي ثانية ~ 0.3 مللي ثانية |
| الحمولة: | 2.5 كجم | ||
| إبراز: | High acceleration shock test system,Mechanical shock test system for microdevices,Shock test system with ±5% repeatability,Mechanical shock test system for microdevices,Shock test system with ±5% repeatability |
||

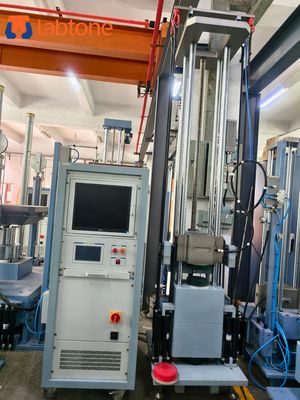

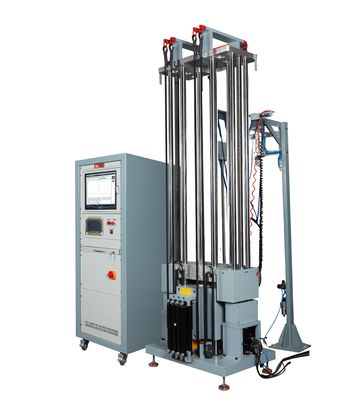

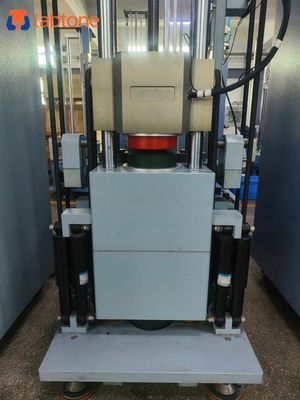

35000g High Acceleration Mechanical Shock Test System With 30x 30cm table
High Acceleration Shock Tester is a high acceleration impact machine, which is designed to carry out specific high acceleration impact test of microdevices.
High Acceleration Shock Tester includes a seismic base, a table, a lifting system, guide columns and a brake system, a shock pulse generator and a shock wave measuring instrument.
The specimen is mounted on the table. The table is accelerated to the base by the elastic system and is stopped by a braking system after it rebounds from the base.
The table is guided on vertical chrome-plated guide columns. The guide rods are also used as the surface against which the table brake system reacts.
System Specifications
This section includes the system specifications, system performance, and shock capabilities.
| Model | G-HSKT30 |
| Table size | 300 mm x 300 mm |
| Base weight | 550kg |
| Table weight | 40kg |
| Machine weight | 1680kg |
| Max. Specimen weight | 30kg |
| Maximum Duration | 11ms |
| Minimum Duration | 0.2ms |
| Lowest Drop Height | 10mm |
| Highest Drop Height | 1500mm |
System Performance
| Model | G-HSKT30 |
| Half sine | |
| Max.velocity | 18.6m/s |
| Max. acceleration | 10000g |
| Max. Specimen weight | 30kg |
| Model | DMSA150 |
| Duration range | 0.06ms~0.3ms |
| Max. Velocity change | 25m/s |
| Max. acceleration | 35000g |
| Max. Specimen weight | 6kg |
Standard Shock Test Machine
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | ||
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | ||
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
|
Max.
Acceleration (G)
|
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Square | 150 | 150 | 150 | 100 | 100 | 100 | |||
|
Pulse duration
(ms)
|
Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | ||
| Square | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |||
| Machine dimension(cm) | 120*110*245 | 130*140*260 | 130×120×260 | 150×130×260 | 200×160×300 | 230×180×310 | 250×220×310 | ||
| Controller cabinet dimension(cm) | W55*D50*H80 | ||||||||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa | ||||||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL- |
||||||||
