تفاصيل المنتج:
|
| نموذج: | G-HSKT10 | حجم الجدول: | 2000 × 2000 ملم |
|---|---|---|---|
| الوزن الأقصى للعينة (كجم): | 10 | نبض الصدمة: | نصف جيبية |
| نطاق التسارع (م / ث 2): | 20 ---- 2000 | نطاق مدة النبض (مللي ثانية): | 0.2 ~ 18 |
| إبراز: | Shock test system for batteries,High-acceleration shock test system,UN38.3 compliant shock test system,High-acceleration shock test system,UN38.3 compliant shock test system |
||

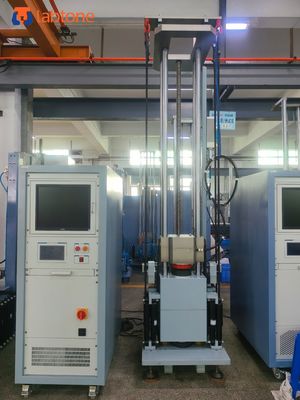

UN38.3 and IEC62281 Standard Shock Test System for Batteris and Phone Cells

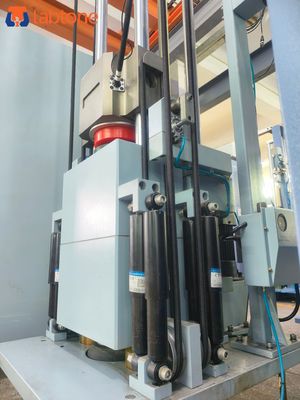

The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.
Shock testing systems Specifications
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table size (cm) | 40*40 | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | 200*200 | |
| Maximum Specimen Weight(Kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 150 | 150 | 150 | 150 | 100 | 100 | 100 | |
| Pulse Duration (ms) | half sine | 40—0.2 | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | ||
| Machine Dimension(cm) | 120*110*245 | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | 250*220*310 | |
| Controller cabinet Dimension(cm) | W55*D50*H80 | |||||||
| Machine Weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 19500 | |
| Utility | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Requirements | ||||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | |||||||
| Model | HSKT10 | HSKT10 | GSKT10D |
| Table size (cm) | 15*15 | 20*20 | 20*20 |
| Shock pulse | Half sine | ||
| Maximum Specimen Weight(Kg) | 5 | 10 | 10 |
| Acceleration Range(G) | 20 ~ 1500 | 20 ~ 1500 | 20 ~ 10000 |
| Pulse Duration (ms) | 0.5~11 | 0.5~11 | 0.2~11 |
| Machine Dimension(cm) | 60*55*250 | 60*55*250 | 90*70*275 |
| Utility Requirements |
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | ||
| Machine Weight(Kg) | 600 | 650 | 110 |
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory
Warranty: 12 months from delivery, lifelong time maintainance.
After-sale service: feedback within 4-8 hours after get the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
Welcome to contact us with your vibration test inquiry.
