تفاصيل المنتج:
|
| حجم الجدول: | 1000*1000 ملم | الحمولة: | 500 كجم |
|---|---|---|---|
| شكل الموجة: | نبض جيب هاف | نطاق التسارع: | 5-80 غرام |
| مدة النبض: | 6-18 مللي ثانية | تردد تكرار بومو: | 1-80 |
| نطاق ارتفاع الإسقاط: | 5-180 ملم | تغير السرعة القصوى: | 2.8m/s |
| إبراز: | Bump test machine with 120 shocks,Durable bump test machine NHIS-90,Mechanical testing machine EN 60069,Durable bump test machine NHIS-90,Mechanical testing machine EN 60069 |
||

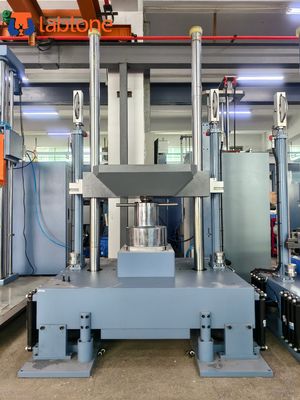

120 shocks per min Bump Shock Test Machine With NHIS-90, EN 60069 International Standard
Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipment
and other electronic electrician products during the transport or use which may be subjected to repeated shocks.
Bump testing machines can also be used to ensure a specimen reaches a satisfying design in structure, or as a means of quality control.
The test based on the specimen undergoing the standard pulse repeat shocking which is specified peak acceleration and duration.
Excellent Durability Repetitive Mechanical Bump Testing Equipment Specifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Waveform | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Plus duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Company Profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument, and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate, and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals and guides as well as having qualified staff and experts to solve your problems.
