تفاصيل المنتج:
|
| حجم الجدول: | 1000*1000 ملم | الحمولة: | 500 كجم |
|---|---|---|---|
| شكل الموجة: | نبض جيب هاف | نطاق التسارع: | 5-80 غرام |
| مدة النبض: | 6-18 مللي ثانية | تردد تكرار بومو: | 1-80 |
| نطاق ارتفاع الإسقاط: | 5-180 ملم | تغير السرعة القصوى: | 2.8m/s |
| إبراز: | bump test machine for electronic components,transportation test bump machine,electronic component design evaluation machine,transportation test bump machine,electronic component design evaluation machine |
||

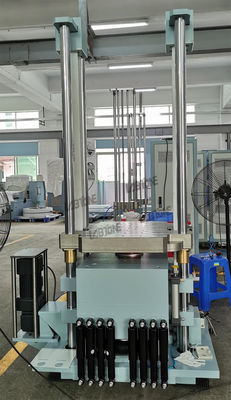

Electronic Rapid Shock And Bump Test Machine For Transportation Test
Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipment
and other electronic electrician products during the transport or use which may be subjected to repeated shocks.
Bump testing machines can also be used to ensure a specimen reaches a satisfying design in structure, or as a means of quality control.
The test based on the specimen undergoing the standard pulse repeat shocking which is specified peak acceleration and duration.
Excellent Durability Repetitive Mechanical Bump Testing Equipment Specifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency, etc
