تفاصيل المنتج:
|
| الأعلى. قوة: | 20 كيلو نيوتن (2000 كجم) | برمجة: | صدمة ، جيبية ، عشوائية |
|---|---|---|---|
| النزوح: | 76.2 ملم | حاسوب: | كمبيوتر أيسر للأعمال |
| رئيس المتوسع: | سبائك الألومنيوم | طاولة منزلقة: | سبائك الألومنيوم |
| إبراز: | Dynamic Shaker vibration test system,ASTM D4728 shipping container tester,vibration test system for R&D,ASTM D4728 shipping container tester,vibration test system for R&D |
||
Dynamic Shaker Random Vibration Testing of Shipping Containers ASTM D4728
Vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.
Technical Specifications:
| Model | EV320 | EV220 |
| Vibration Generator | VG2200/76 | VG2200/50 |
| Frequency(Hz) | 1-3000 | 1-3000 |
| Max Exiting Force(kg.f) | 2000 | 2000 |
| Max. Displacement (mmp-p) | 76.2 | 50.8 |
| Max. Acceleration(g) | 80 | 80 |
| Max. Velocity(cm/s) | 200 | 200 |
| Payload(kg) | 300 | 300 |
| Armature Mass(kg) | 25 | 22 |
| Armature Diameter(mm) | φ320 | φ320 |
| Cooling Method | Forced Air Cooling | |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |
| Aggregate Capacity(KW) | 40 | 40 |
Meet International Standards:
MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

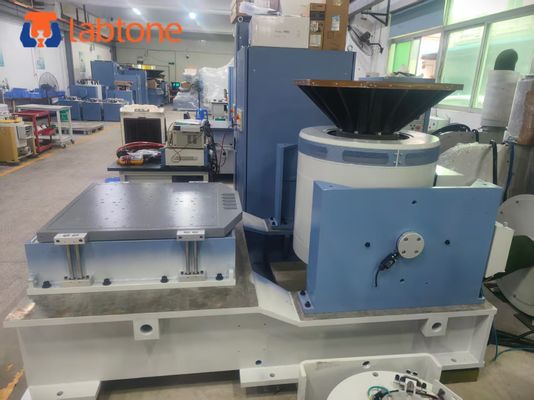

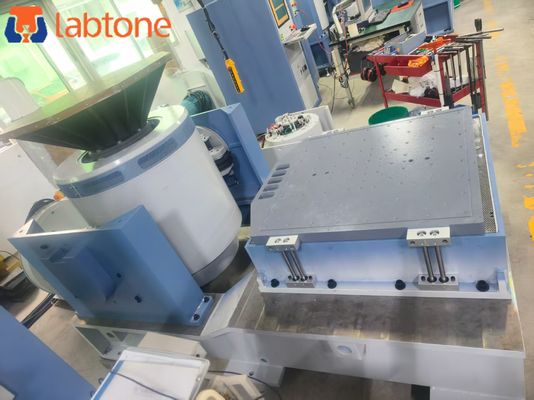

Horizontal oil film slip table
The horizontal slip table is designed to have high tilting moment and lateral restriction. This design concept is combined with standard horizontal slip table to enable high dynamic moment limit and keep guide oil film damping feature. The horizontal slip table is composed of a slipper, a connector, a natural granite slab, horizontal slip table base and an independent oil source.
