تفاصيل المنتج:
|
| ارتفاع ارتفاع: | 0-1200 مم | عرض الارتفاع: | شاشات الكريستال السائل |
|---|---|---|---|
| طريقة الإعداد: | لوحة اللمس | نوع القذف: | قطرة مجانية |
| بُعد الآلة: | 2550 (طول) × 2313 (عرض) × 2880 (ارتفاع) | وزن الآلة: | 2500 كجم |
| إبراز: | ISTA compliant lab drop tester,ASTM D 5276 package drop tester,precision ball screw drop tester,ASTM D 5276 package drop tester,precision ball screw drop tester |
||

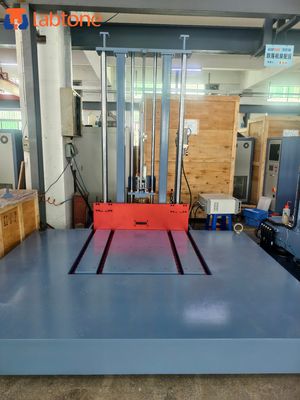

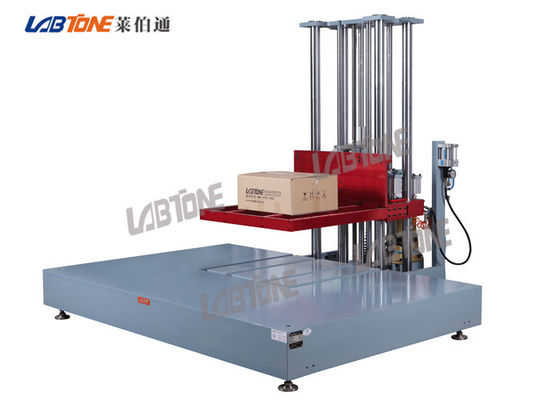

Free Fall Drop Tester For Big And Heavy Packages Meet ISTA And ASTM D 5276
Drop Tester Main Parameters
Drop height range: 0 to 1200 mm
Max. load: 700 kg (customized)
Height display: LCD
Machine type: E-shaped Fork
Control means: PLC and touch panel
Setting method: touch panel
Drop mode: free drop
Height adjustment means: motor and precision ball screw
Volume of test specimen: 2350 x 1580 x 400 mm (customized)
Cushioning mechanism: Hydraulic Cushion + High Pressure Brake Device
Machine dimension (mm): 2550 (L) × 2313 (W) × 2880 (H)
Base dimension (mm): 2550 (L) × 1700 (W) × 235 (H)
Power supply: three phase 380V/50HZ
Air pressure requirement: 0.5 - 0.7 MPa
Equipment weight: about 2500kg
Product Function
Drop tester for heavy packaged freight are mainly used for assessing the ability of large package products to bear drop in the process of handling, transport and loading and unloading, including design of a cushioning package, selection of packaging materials, fragility of package, goods in standard testing package (surface, angle and edge), etc. They are used for assessing the protection capability of packages for goods, thus providing a basis for package design, selection of cushioning materials for package, and improving the package design.
Specification
| Model | DT020 | DT030 | DT050 |
| Drop height(mm) | 0----1200 | 0----1200 | 0---1200 |
| Specimen weight(KG) | 200 | 300 | 500 |
| Specimen dimension(mm) | 1700*1500*1200 | 1900*1500*1200 | 1900*1500*1200 |
| Drop type | Free drop | ||
| Machine dimension(mm) | 2100*1700*2800 | 2100*1700*2800 | 2100*1700*2800 |
| Machine Weight(kg) | 2350 | 2500 | 3200 |
| Power supply | 3 phase AC380V 50HZ | ||
| Standards | ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 | ||
Equipment Configuration
| No. | Equipment name | Model | Qty. | Description |
| 1 | Drop tester | DT070 | 1 set | |
| 2 | Pneumatic–hydraulic pressure cylinder | 1 pcs | ||
| 2 | Controller | 1 set | ||
| 3 | Edge and Corner Auxiliary Fixture | 1 set | ||
| 4 | Connection cable | 1 set |
Labtone Service
| Presales: |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| In-Sales: |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale: |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM,Design service,Buyer lable |
Detailed Picturers:
