تفاصيل المنتج:
|
| حجم الجدول: | 800 × 800 مم | الحمولة: | 200 كجم |
|---|---|---|---|
| شكل الموجة: | موجة جيب حاف | نطاق التسارع: | 5-100 جرام |
| مدة النبض: | 6-18 مللي ثانية | معدل عثرة: | قابل للتعديل 1 إلى 2 نتوءات / ثانية. |
| نطاق ارتفاع الإسقاط: | 5-120 ملم | تغير السرعة القصوى: | 2.2 م / ث |
| إبراز: | Bump test machine with GJB150 compliance,Shock test machine for MIL STD 810F,Bump tester meeting IEC68 2 27 standards,Shock test machine for MIL STD 810F,Bump tester meeting IEC68 2 27 standards |
||
Bump Shock Test Machine for Battery Test 10G 11ms Frequency Range 1-120Hz

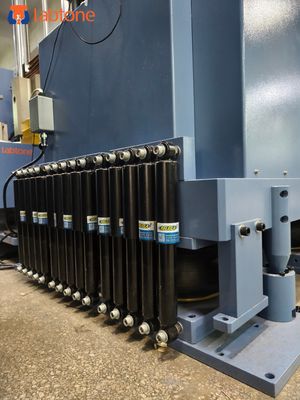

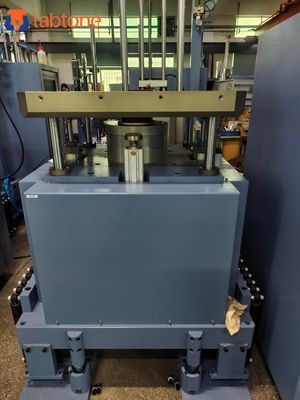

SKM series shock / bump testing systems are a combination of the bump test and shock test function devices. Simple structure, user-friendly control, high reliability and good waveform. With high efficient continuous bump test, it allows the end-user to run up to 60 bump tests per minute and 10 shock tests per minute. SKM series can perform single-shock, continuous shock and interval shock. It also realizes various shock type, good repeatability, low-energy design, non-pollution, environmental protection, unnecessary special foundation.
SKM series can perform half sine waveform, final peak saw-tooth waveform shocking test etc. It is compliant to international test specifications including GJB150, GJB360, GJB548, GB/T2423, GJB1217, JJG497, MIL-STD-810F, IEC68-2-27 and etc..
Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
