تفاصيل المنتج:
|
| حجم الجدول: | 70 × 80 سم | Max. الأعلى. specimen weight وزن العينة: | 100 كجم |
|---|---|---|---|
| الأعلى. تسريع: | نصف جيبية: 600 جرام | بُعد الآلة: | 130x120x260 سم |
| وزن الآلة: | 3200 كجم | مزود الطاقة: | 3 مراحل AC 380V 50HZ |
| الاسم: | نظام اختبار الصدمات 600 جرام معدات اختبار تأثير التسارع لمستحضرات التجميل والأجزاء الإلكترونية | ||
| إبراز: | custom shock test system,shock test system for size weight,shock performance testing equipment,shock test system for size weight,shock performance testing equipment |
||

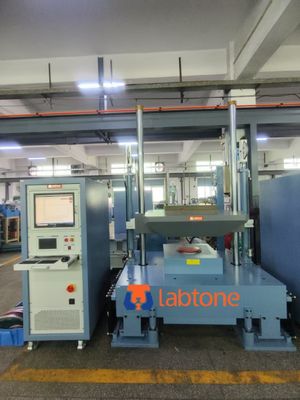

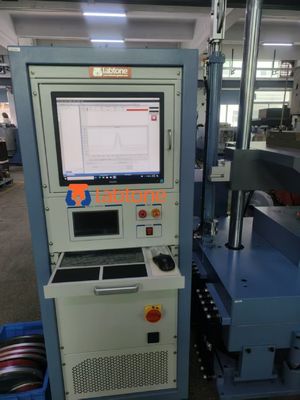

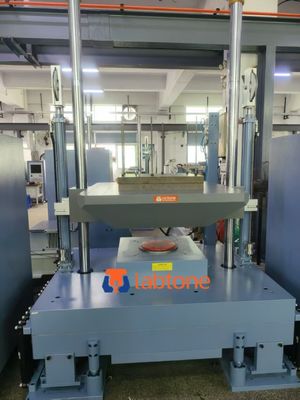

Shock Test System 600g Acceleration Impact Test Equipment For Cosmetics, Electronic parts
We ultimately recommend the most suitable system configuration for every testing application based on two important criteria:
Each customer has unique requirements for their dynamic testing equipment. It is important to know the size and weight of test items to correctly configure the appropriate testing equipment. The size of your largest test item will help determine the table surface area. The maximum payload will help determine the shock system performance category.
Shock testing levels vary significantly depending on the product you are evaluating or the conditions you are simulating. The two most important shock performance criteria are velocity change and acceleration level. It is also important to know the shock pulse waveforms—half sine, sawtooth, or trapezoidal.
Shock testing systems Design standards: GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL
Shock testing systems Specifications
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table size (cm) | 40*40 | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | 200*200 | |
| Maximum Specimen Weight(Kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 150 | 150 | 150 | 150 | 100 | 100 | 100 | |
| Pulse Duration (ms) | half sine | 40—0.2 | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | ||
| Machine Dimension(cm) | 120*110*245 | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | 250*220*310 | |
| Controller cabinet Dimension(cm) | W55*D50*H80 | |||||||
| Machine Weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 19500 | |
| Utility | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Requirements | ||||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | |||||||
Company Profile
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
