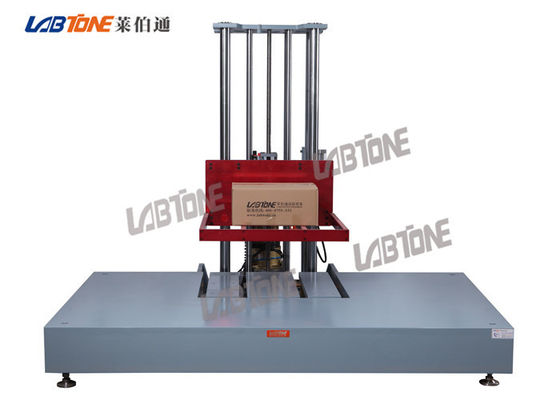

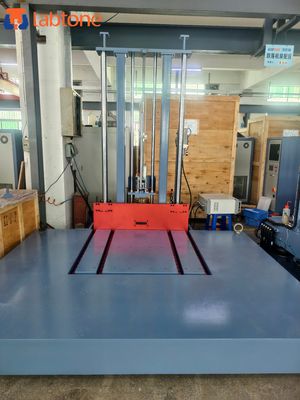

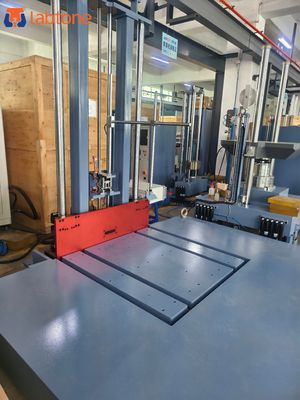

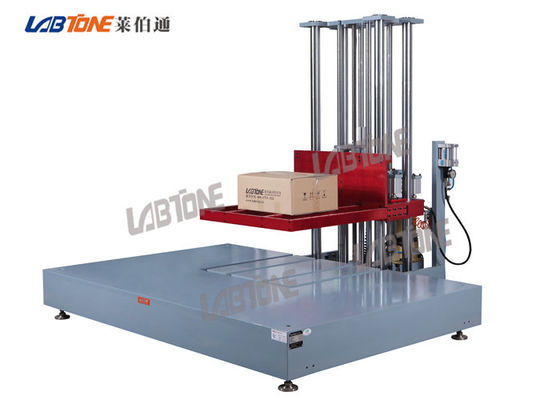

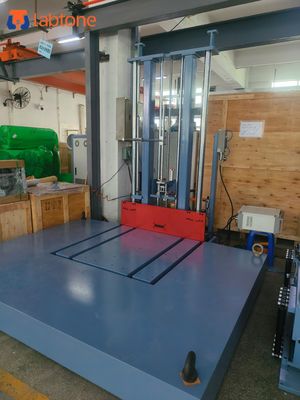

Free Fall 1200mm Packaging Drop Tester for large packaging with high mass of 200kg Payload

Operating Principle

The machine will move the drop platen which carrying the package under test to the set height, then freely fall the package at flat, edge and corner position. During test, the platen will drop at large than 1G acceleration to ensure the package performs free fall condition.

Equipment Configuration

FAQ:

1. How to you attach the hardware you're testing to your shaker?

By means of a fixture, usually aluminium or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.

2. How do you control shakers?

If we're looking for resonances in the product we're testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies. But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously. Control commands go into the keyboard of a specially programmed computer.

3. What are those resonances? Are they bad?

Have you ever noticed the steering wheel moving with rather a large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There's a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure. When we shake an automotive or ship orland vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components and the PWB.

Service

Pre-Sales Service

• Technical consultation: test method, laboratory planning and suggestion.
• Equipment selection: selection scheme, FAQ.
• Product testing scheme.
• Customer communication and progress report.

​In-sales

• Customer communication and progress report.
• Guidance for pre-installation preparation, equipment commissioning and test run.
• Calibration (when third party's verification is required).

After-Sales Service

• Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
• Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
• Technical support: special paid services are provided according to customer’s needs.
