تفاصيل المنتج:
|
| اسم المنتج: | معدات اختبار الاهتزاز | أقصى تسارع: | 100 جم |
|---|---|---|---|
| السرعة القصوى: | 200 سم / ثانية | نطاق التردد: | 2-2500 هرتز |
| أقصى إزاحة: | 76 ملم | مزود الطاقة: | تيار متردد ثلاثي الأطوار 380 فولت ± 10٪ 50 هرتز |
| قوة شرط الذروة: | 49 كيلو نيوتن (5000 كجم.و) | وزن المحرك: | 50 كجم |
| إبراز: | Durable vibration testing machine 1000kg payload,Vibration testing machine 2-2500Hz frequency range,Package testing vibration machine with warranty,Vibration testing machine 2-2500Hz frequency range,Package testing vibration machine with warranty |
||

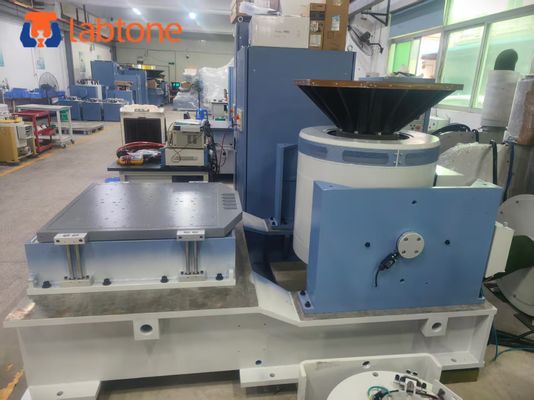

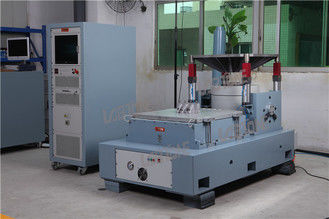

5000Kg.f Exciting Force Vibration Testing Systems for Laboratory Testing Comply To CE Standard
Industry Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applications:
Specifications: EV260-EV420
| Model | EV260 | EV320 | EV330 | EV340 | EV350 | EV420 |
| Vibration Generator | VG6000/50 | VG2000/76 | VG3000/76 | VG4000/76 | VG5000/70 | VG2000/100 |
| Frequency(Hz) | 2-2500 | 2-3000 | 2-2500 | 2-2500 | 2-2500 | 2-3000 |
| Max Exiting Force(kg.f) | 6000 | 2000 | 3000 | 4000 | 5000 | 2000 |
| Max. Displacement (mmp-p) | 50 | 76 | 76 | 76 | 76 | 100 |
| Max. Acceleration(g) | 100 | 80 | 85 | 80 | 100 | 90 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 200 | 200 | 200 |
| Payload(kg) | 1000 | 1000 | 1000 | 1000 | 1000 | 500 |
| Armature Mass(kg) | 50 | 25 | 35 | 50 | 50 | 23 |
| Armature Diameter(mm) | φ450 | φ320 | φ320 | φ440 | φ440 | φ320 |
| Cooling Method | Forced Air Cooling | |||||
| Shaker Weight(kg) | 3800 | 2000 | 3000 | 3500 | 3800 | 2000 |
| Shaker Dimension L*W*H(MM) | 1600*1120*1340 | 850*1000*1100 | 1100*1300*1440 | 1100*1300*1520 | 1100*1300*1520 | 850*1000*1100 |
| Power Amplifier | Amp70k | Amp30k | Amp45k | Amp55k | Amp70k | Amp35k |
| Power Amplifier Weight(kg) | 1000 | 550 | 600 | 800 | 900 | 550 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||||
| Aggregate Capacity(KW) | 95 | 40 | 60 | 80 | 90 | 45 |
Features:
Warranty: 12 months from delivery, lifelong time maintainance.
After-sale service: feedback within 4-8 hours after get the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
Product Detail:
