تفاصيل المنتج:
|
| قوة جيبية: | 300 كجم.و(3 كيلو نيوتن) | قوة عشوائية: | 300 كجم.و(3 كيلو نيوتن) |
|---|---|---|---|
| صدمة فروس: | 600 كجم.و(6 كيلو نيوتن) | النزوح: | 40 ملم |
| أقصى تسارع: | 100g | الحمولة: | 120 كجم |
| السرعة القصوى: | 2.0 م/ث | الاسم: | آلة اختبار الاهتزاز منخفضة الصيانة مع نطاق تردد 2-3000 هرتز للاهتزاز العشوائي |
| إبراز: | Vibration testing machine with international standards,Versatile vibration tester DIN ASTM compliant,Vibration testing equipment IEC ISTA JIS,Versatile vibration tester DIN ASTM compliant,Vibration testing equipment IEC ISTA JIS |
||

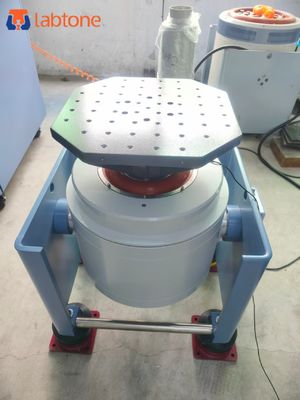

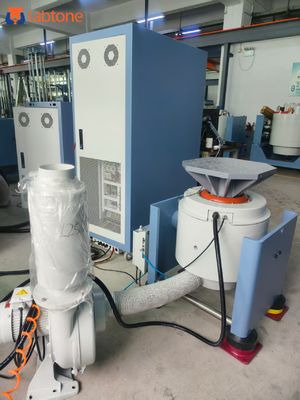

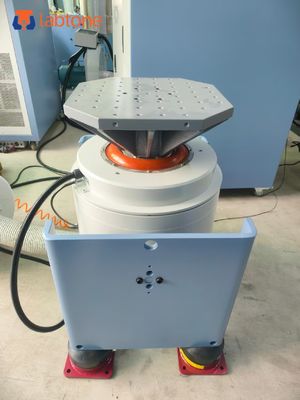

Low Maintenance Vibration Test Machine with Frequency Range 2-3000Hz for Random Vibration
Long time operation
Low Maintenance
Up to 40mm displacement
Automatic centering of the armature
Trunnion with vibration isolators
Meet MIL-STD, DIN, ISO, ASTM,IEC,ISTA,JIS,BS.GB and other international standards
Vibration Test Machine Specification:
| Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 |
| Frequency(Hz) | 2-4000 | 2-2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 300 | 600 | 600 | 1000 | 2000 |
|
Max. Displacement
(mmp-p)
|
25 | 38 | 25 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 120 | 180 | 200 | 200 | 200 |
| Payload(kg) | 110 | 120 | 200 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 3 | 6 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ150 | φ200 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||||
| Vibration Generator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*560*670 | 750*555*670 | 800*600*710 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp3k | Amp6k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||||
| Power Amplifier Weight(kg) | 250 | 250 | 320 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | |||||
| Utility Requirements | 3-phase AC380V ±10% 50Hz | |||||
| Aggregate Capacity(KW) | 8 | 9 | 18 | 20 | 25 | 35 |
Presales:
In-Sales:
.
Our workshop:
Installation picture references
