تفاصيل المنتج:
|
| الاسم: | MIL STD 810G آلة اختبار الاهتزاز للسيارات لاختبار الاهتزاز لمحاكاة النقل | قوة الذروة المقدرة: | 2000kg.f (20 كيلو نيوتن) |
|---|---|---|---|
| صدمة فروس: | 4000kg.f (40 كيلو نيوتن) | النزوح: | 51mm |
| السرعة القصوى: | 2.0m/s | طريقة التبريد: | مبرد بالهواء |
| الأعلى. تسريع: | 100g | التسليح: | φ240 |
| Max.Power الاستهلاك: | 8kw | ||
| إبراز: | Cooling fan vibration testing machine,Low noise automotive vibration tester,MIL STD 810G transport simulator,Low noise automotive vibration tester,MIL STD 810G transport simulator |
||

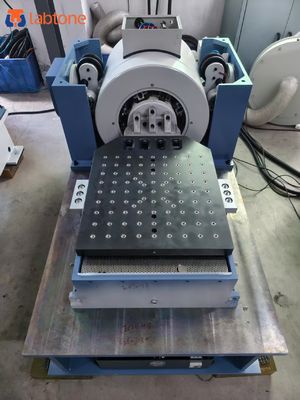

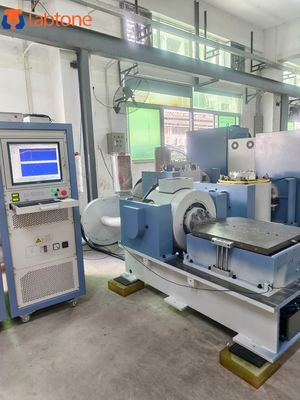

MIL STD 810G Vibration Test Machine Automotive for Transport Simulation Vibration Test
Vibration Test Machine Specification:
|
Model
|
EV103
|
EV203
|
EV106
|
EV206
|
EV210
|
EV220
|
|
Frequency(Hz)
|
2-4000
|
2-2500
|
2-3000
|
2-3000
|
2-3000
|
2-2500
|
|
Max Exiting Force(kg.f)
|
300
|
300
|
600
|
600
|
1000
|
2000
|
|
Max. Displacement
(mmp-p)
|
25
|
38
|
25
|
50
|
50
|
50
|
|
Max. Acceleration(g)
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Max. Velocity(cm/s)
|
200
|
120
|
180
|
200
|
200
|
200
|
|
Payload(kg)
|
110
|
120
|
200
|
200
|
300
|
400
|
|
Armature Mass(kg)
|
3
|
3
|
6
|
6
|
10
|
20
|
|
Armature Diameter(mm)
|
φ150
|
φ150
|
φ200
|
φ200
|
φ240
|
φ320
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Vibration Generator Weight(kg)
|
460
|
460
|
720
|
920
|
1100
|
1600
|
|
Vibration Generator Dimension L*W*H(MM)
|
750*560*670
|
750*555*670
|
800*600*710
|
800*600*710
|
845*685*840
|
1200*870*1100
|
|
Power Amplifier
|
Amp3k
|
Amp3k
|
Amp6k
|
Amp6k
|
Amp12k
|
Amp22k
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Power Amplifier Weight(kg)
|
250
|
250
|
320
|
320
|
350
|
500
|
|
Power Amplifier Dimension L*W*H(MM)
|
800*550*1250
|
|||||
|
Utility Requirements
|
3-phase AC380V ±10% 50Hz
|
|||||
|
Aggregate Capacity(KW)
|
8
|
9
|
18
|
20
|
25
|
35
|
Size(mm): 300 x 300-1500x1500
Material: Aluminium /Magnesium
Expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping, and minimizes the amplification factor of high frequency resonance.
* Technical consultation: test method, laboratory planning and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
